Implementing a Python Inference Service with HTTP (FastAPI) and RPC (gRPC) Interfaces

Introduction

When deploying AI models in production, we often face a choice:

Should we expose the service via HTTP (REST/JSON) or RPC (gRPC)?

This tutorial walks through building a Python inference service with both FastAPI (HTTP) and gRPC, then compares their performance and usability.

In modern AI applications, it’s common to deploy machine learning models as services so that different systems and programming languages can use them easily. For example, a Java backend system might need to use a PyTorch-trained model. Deploying the model in a Python service and exposing an API allows the Java system to send input data and receive predictions.

In this project, we built a Python inference service that supports two interface types:

1. HTTP Interface using FastAPI (supports JSON and multipart/form-data requests)
2. gRPC Interface using Protocol Buffers (efficient binary RPC calls)

Finally it provides a hands-on guide for machine learning API deployment using Python, showing how to serve AI models with both REST (FastAPI) and gRPC for production-grade inference services.

Project Setup: Loading ResNet18 and API Interfaces

• Load the ResNet18 model from local weights (avoiding online download and SSL issues).
• Accept an image from the client, perform preprocessing, run inference, and return the top-K classification results.
• Implement both HTTP (FastAPI) and gRPC interfaces.

Technology Stack for Python Inference Service (FastAPI + gRPC)

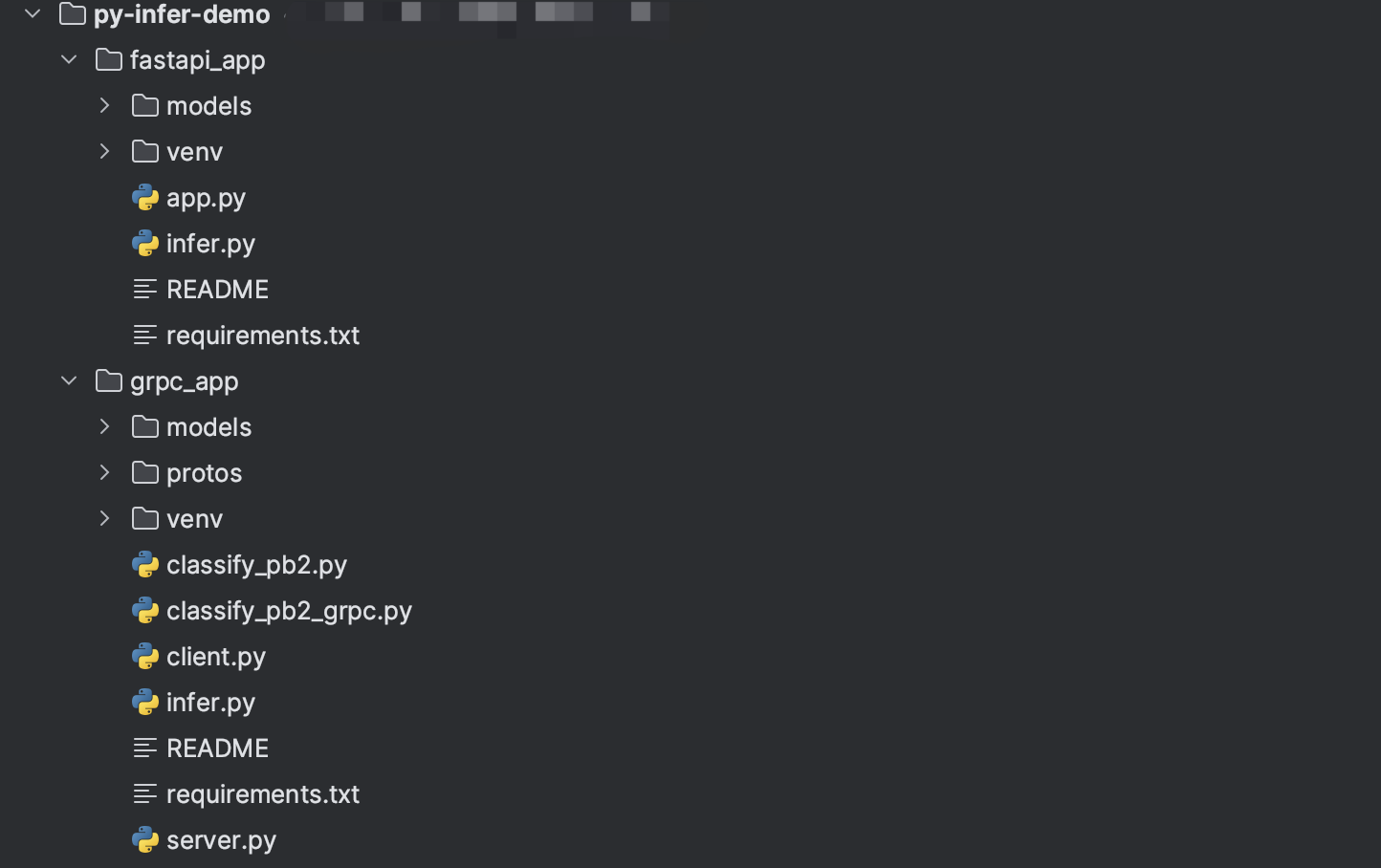

Project Structure Below:

Building the HTTP Inference API with FastAPI

API Design

• POST /predict/file: Accepts an uploaded image file via multipart/form-data.
• POST /predict/b64: Accepts a base64-encoded image string (useful for mobile or cross-language scenarios).

Core Inference Code (fastapi_app/infer.py)

import torch
from torchvision import models
from PIL import Image
from typing import List, Tuple

_MODEL = None
_TRANSFORM = None

def _load_model():
    global _MODEL, _TRANSFORM
    if _MODEL is None:
        weights_path = "/path/to/resnet18-f37072fd.pth"
        _MODEL = models.resnet18()
        state_dict = torch.load(weights_path, map_location=torch.device("cpu"))
        _MODEL.load_state_dict(state_dict, strict=False)
        _MODEL.eval()

        default_weights = models.ResNet18_Weights.DEFAULT
        _TRANSFORM = default_weights.transforms()
    return _MODEL, _TRANSFORM

def preprocess(img: Image.Image) -> torch.Tensor:
    _, transform = _load_model()
    return transform(img).unsqueeze(0)

@torch.inference_mode()
def predict(img: Image.Image, topk: int = 5) -> List[Tuple[str, float]]:
    model, _ = _load_model()
    x = preprocess(img)
    logits = model(x)
    probs = torch.softmax(logits, dim=1)[0]
    topk_probs, topk_idxs = torch.topk(probs, k=topk)
    classes = models.ResNet18_Weights.DEFAULT.meta["categories"]
    return [(classes[i], float(topk_probs[j])) for j, i in enumerate(topk_idxs)]

FastAPI App Entrypoint (fastapi_app/app.py)

from fastapi import FastAPI, UploadFile, File
from fastapi.responses import JSONResponse
from pydantic import BaseModel
from infer import predict
from PIL import Image
import base64, io

app = FastAPI(title="ResNet18 Inference Service")

class B64ImageRequest(BaseModel):
    image_base64: str
    topk: int = 5

@app.post("/predict/file")
async def predict_file(file: UploadFile = File(...), topk: int = 5):
    img = Image.open(file.file).convert("RGB")
    res = predict(img, topk)
    return JSONResponse({"topk": [{"label": l, "prob": p} for l, p in res]})

@app.post("/predict/b64")
async def predict_b64(req: B64ImageRequest):
    img = Image.open(io.BytesIO(base64.b64decode(req.image_base64))).convert("RGB")
    res = predict(img, req.topk)
    return JSONResponse({"topk": [{"label": l, "prob": p} for l, p in res]})

Testing with curl

It is easy to test using curl command.

curl -X POST "http://127.0.0.1:8000/predict/file?topk=5"
	-F "file=@/path/to/image.jpg"

Implementing the gRPC Inference API with Protocol Buffers

Protocol Buffers Definition (grpc_app/protos/classify.proto)

syntax = "proto3";

package classify;

service Classifier {
  rpc Predict (ImageRequest) returns (PredictionResponse) {}
}

message ImageRequest {
  bytes image = 1;
  int32 topk = 2;
}

message Prediction {
  string label = 1;
  float prob = 2;
}

message PredictionResponse {
  repeated Prediction topk = 1;
}

Inference Logic (grpc_app/infer.py)

Same model loading logic as FastAPI, using local weights

gRPC Server (grpc_app/server.py)

import grpc
from concurrent import futures
import classify_pb2, classify_pb2_grpc
from infer import predict_bytes

class ClassifierServicer(classify_pb2_grpc.ClassifierServicer):
    def Predict(self, request, context):
        preds = predict_bytes(request.image, topk=request.topk or 5)
        return classify_pb2.PredictionResponse(
            topk=[classify_pb2.Prediction(label=l, prob=p) for l, p in preds]
        )

def serve():
    server = grpc.server(futures.ThreadPoolExecutor(max_workers=4))
    classify_pb2_grpc.add_ClassifierServicer_to_server(ClassifierServicer(), server)
    server.add_insecure_port("[::]:50051")
    server.start()
    server.wait_for_termination()

if __name__ == "__main__":
    serve()

Testing gRPC Client

For testing, we implement a gRPC client.

import grpc, classify_pb2, classify_pb2_grpc

with open("image.jpg", "rb") as f:
    data = f.read()

channel = grpc.insecure_channel("127.0.0.1:50051")
stub = classify_pb2_grpc.ClassifierStub(channel)
resp = stub.Predict(classify_pb2.ImageRequest(image=data, topk=5))
print(resp)

HTTP vs gRPC Performance Comparison and Deployment Takeaways

• HTTP is ideal for quick integration, easy debugging, and scenarios where clients can easily send JSON or form-data.
• gRPC is better for low-latency, high-throughput systems where performance matters.

Using local weights avoids external dependencies, improves startup time, and makes deployments more stable.

In production, the choice depends on the trade-off between ease of integration and performance requirements.
